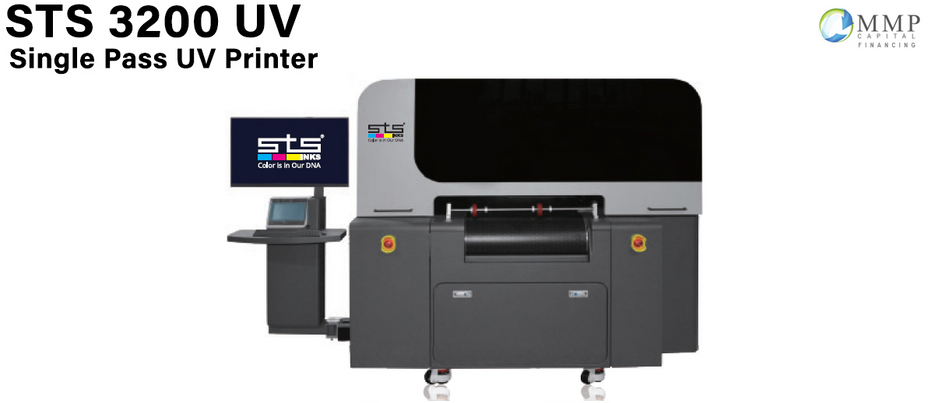

STS 3200 UV Single Pass UV Printer

 Features

• The printer uses a special PLC control system with a patented print headboard unique to this printer.
  This guarantees a stable printing system and has features like image feathering, variable data printing and 4 levels of gray scale.
  The model S3200 can print multiple tasks without stopping. This ensures a continuous workflow.
  The printer has an ink supply system that incorporates a degassing feature that gets rid of air automatically in the ink supply chain that can cause dropouts.
  The printhead has a built-in ink circulation with automatic pressure adjustments that are part of the overall ink delivery system.
• This robust printhead can remain trouble free for over 2 years. We have even incorporated a head strike failure detection system to further enhance the longevity of the printhead.
• The continuous feed delivery belt, has precise automatic correction for any skew deviations and has well-placed suction holes. These features ensure that the placement of printing materials are correctly positioned as they move through the printing platform.
• The printer is equipped with an automatic calibration system that is very sensitive, an automatic printing positioning system, and many sensors to make sure everything is positioned and printed accurately at high production speeds.
• This digital high-speed printer is easy to use – just switch it on and it’s ready to print. It is cost effective, fast, and efficient. You don’t need to make fixtures or templets. Just import your image into the software and print. The maximum length of a single image is 16.4 feet long. Plus, it can print with high accuracy, up to 600 dpi x 1200 dpi. It’s fastest speed is 164 ft. per minute

Nozzle Advantages:

• The original S3200 U3 print head authorized by EPSON® has variable ink dots and can do four-level gray scale printing.
• The S-shaped design saves space and makes it easy to expand, which helps increase production efficiency
• It can print variable data and handle multiple tasks without stopping.
• The print head has its own ink circulation system, including automatic ink pressure and a double negative pressure ink supply system.
• The high-precision positioning holes make it easier to replace and install without needing extra adjustments.
• We created a special circuit board and software for the print head ourselves.
• We have several technologies protected by patents that are unique to us.

Nozzle Specifications:

• Nozzle Model: S3200-U3

• Ink Type Compatibility: UV Ink (Viscosity: 8-9 mPa•s)

• Nozzle Count: 3200 total (2,840 effective/net nozzles)

• Nozzle Layout: 2 rows (Row spacing/density: 1/300 inch)

• Ink Drop Volume: 4.8 - 9 - 15 pl (picoliters)

• Injection Frequency: 48 kHz (single point) / 24 kHz (multiport)

• Printhead Dimensions: 150.4 x 30 x 52 mm / 5.92” x 1.18” x 2.04”

• Printhead Weight: 235g / 8 oz

General STS 3200 UV Printer Core Specs

• Product Name: UV Digital Printing Machine (Brand: STS Inks)

• Color Configuration: C / M / Y / K / W

• Printing Resolutions: 600 x 600 dpi | 600 x 1200 dpi

• Feeding Layout & Height: Max 100 mm feeding height (Auto Feeder is optional)

• Customized Service: Yes

• Applications: Various plastic products, acrylic, hollow board, coated paper, wood board, glass, ceramic tile, cardboard, etc.

• Production Speeds: * 600 x 1200 dpi: 15 m/min (49.21 ft/min)

  • 600 x 600 dpi: 35 m/min (114.82 ft/min) (Note: "ft/h" in the raw text is a typo for ft/min)

  • 600 x 300 dpi: 50 m/min (164.04 ft/min) (Note: "ft/h" in the raw text is a typo for ft/min)

Printer Specifications:

•  Models: SU120 / SU230 / SU345

• Printhead Quantity: 4 to 15 pcs

• Max Printing Size: 345 mm / 13.58”

• Max Feeding Width: 600 mm / 23.62”

• Power & Weight: 4.5 kW | 900 kg / 1984 lbs

• Printer Size (LxWxH): 1900 x 1830 x 1700 mm / 74.80” x 72.04” x 66.92”

Models: SU460 / SU575

• Printhead Quantity: 16 to 25 pcs

• Max Printing Size: 575 mm / 22.63”

• Max Feeding Width: 1200 mm / 47.24”

• Power & Weight: 5 kW | 1046 kg / 2306 lbs

• Printer Size (LxWxH): 2650 x 2250 x 1650 mm / 104.33” x 88.58” x 64.96”

Models: SU690 / SU805

• Printhead Quantity: 24 to 35 pcs

• Max Printing Size: 805 mm / 31.69”

• Max Feeding Width: 1600 mm / 62.99”

• Power & Weight: 7 kW | 1600 kg / 3527 lbs

• Printer Size (LxWxH): 3550 x 2250 x 1810 mm / 139.76” x 88.58” x 71.25”

Models: SU920 / SU1035 / SU1150

• Printhead Quantity: 32 to 50 pcs

• Max Printing Size: 1150 mm / 45.27”

• Max Feeding Width: 2000 mm / 78.74”

• Power & Weight: 8 kW | 2000 kg / 4409 lbs

• Printer Size (LxWxH): 4120 x 2250 x 2200 mm / 162.20” x 88.58” x 86.61”
